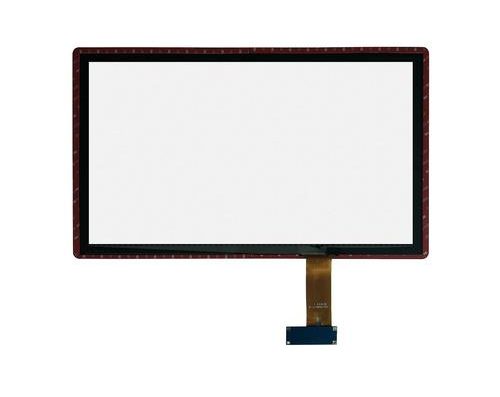

21.5 بوصة شاشة تعمل باللمس بالسعة
WTY215599A01
21.5 بوصة شاشة تعمل باللمس بالسعة
Production State
In Production
Stock Quantity
10 Pieces
Product Details
21.5 بوصة شاشة تعمل باللمس بالسعة لمحة عامة عن الجهاز الذكي:
ميزات شاشة اللمس:
ما هي المزايا التي تقدمها Wanty؟
الفوائد المحتملة الإضافية:
لماذا تختار Wanty؟
Technical Parameters
| Model | WTY215599A01 |
| Size | 21.5 inches |
| Interface | USB |
| Structure | G+G |
| IC Chip | ILI2510 |
| Hardness | 6H |
| Transparency | ≥82% |
| Working Voltage | 5V |
| Touch Points | 10 points |
| Viewing Area (mm) | 476.00*267.70 |
| Outline Dimension (mm) | 524.60*311.80 |
| Operating Temperature | -20ºC~+70ºC |
| Storage Temperature | -30ºC~+80ºC |
| Support System | Windows, Android, Linux etc |
| Application Fields | Industrial Control, Home Automation, Medical Device, Self-service Terminal etc |
21.5 Inch Touch Screen Custom Solution

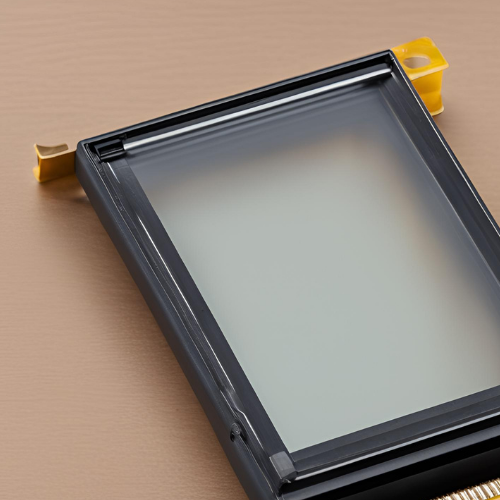

Panel Type
Here is Wanty to specially make you a lovely panel. Glossy panels also tend to provide a brighter and much vivider image compared to the matt ones. Anti-glare panels are slightly lighter, of a less reflective nature in comparison and more comfortable to view in conditions of high brightness. So it is up to you which of the two you which we should design.

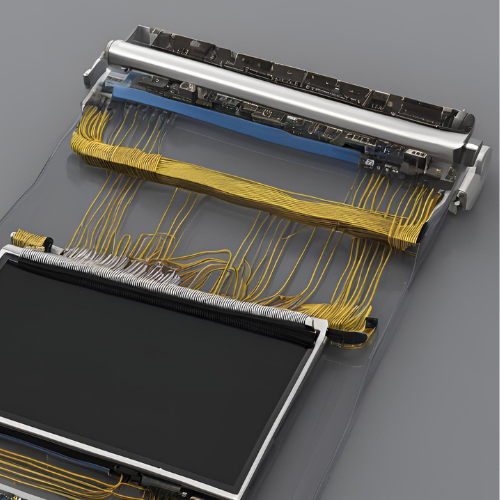

LCD Cable Customization
Allow us to know the length, position or the pinout of your cables we will bring it to life. Wanty will work with you to ensure that you get the most appropriate cable solution that will ensure that your connections can easilyClick.
LCD Interface Customization
Custom LCD Interface Solutions for Streamlined Performance is what Wanty is offering you. Yes now you can also Maximize Your Design Potential by letting us incorporate HDMI, USB, SPI, VGA and more.
Brightness
Do you wish to go up or down in brightness? Wanted here is, tailored for your higher nit rating for high brightness.
