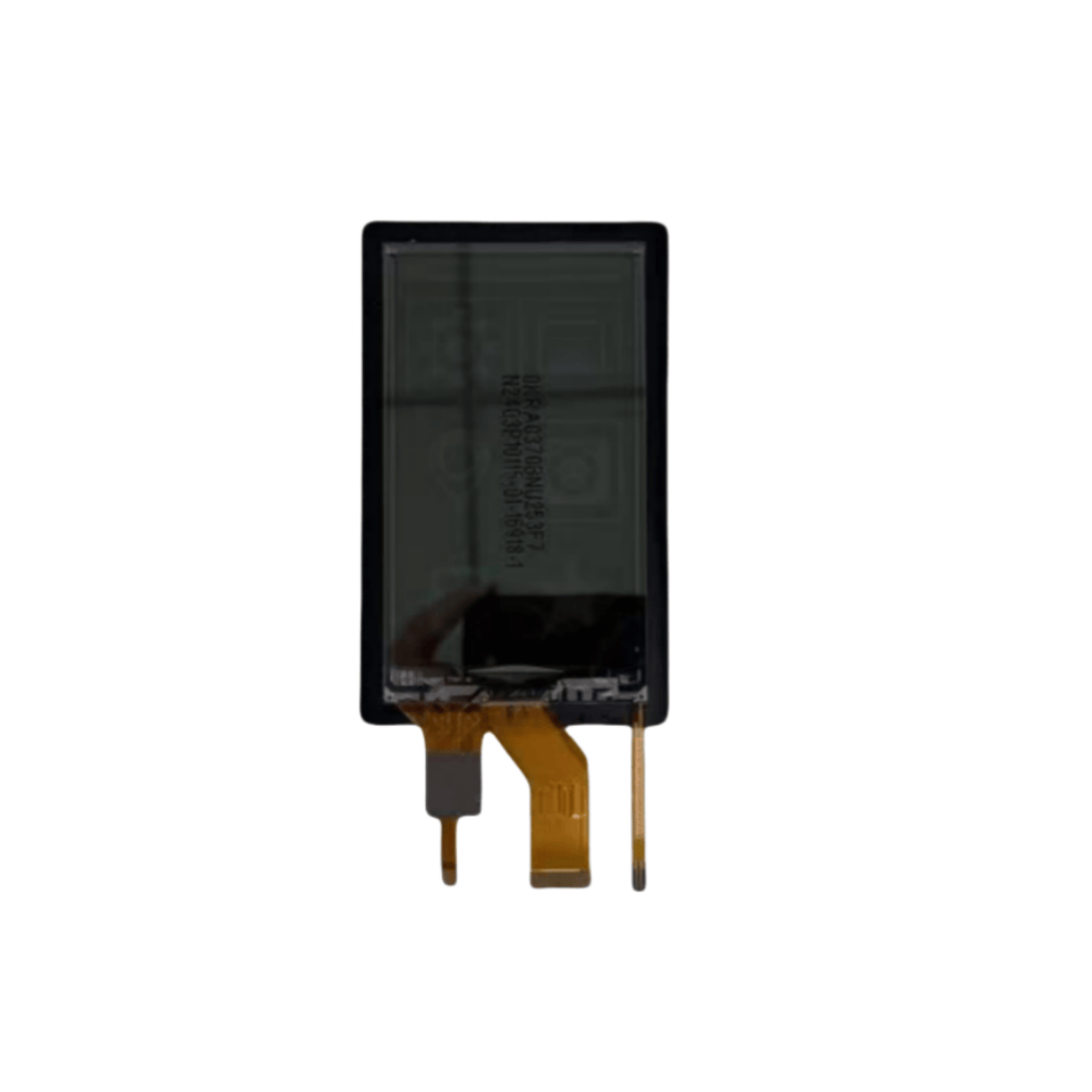

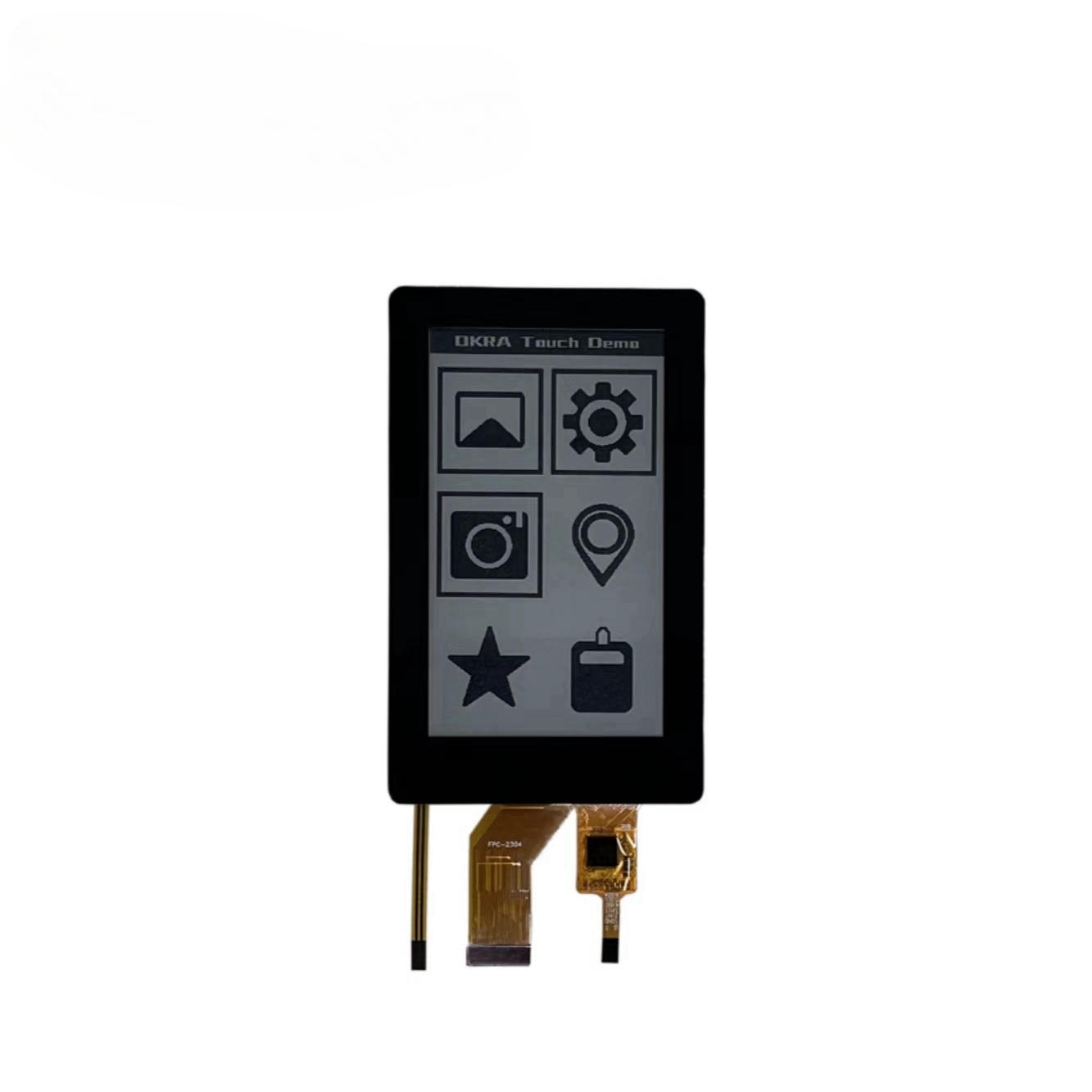

شاشة Eink مقاس 3.7 بوصة مع ضوء باللمس والضوء الأمامي
TYKEGM037001T01
شاشة Eink مقاس 3.7 بوصة مع ضوء باللمس والضوء الأمامي
Production State
In Production
Stock Quantity
10 Pieces
Product Details
< فئة H2 = "WP-block-heading" النمط = "حجم الخط: 30 بكسل" > 3.7 بوصة وحدة عرض مع نظرة عامة على SPI 240x416:
ميزات شاشة E Ink مقاس 3.7 بوصة (مع اللمس والضوء الأمامي):
فوائد وحدة العرض مقاس 3.7 بوصة
لماذا تختار Wanty؟
Mechanical Data
|
NO.
|
ITEM
|
SPECIFICATION
|
UNIT
|
|
1
|
Dot Matrix
|
416(H)×240(V)
|
-
|
|
2
|
Screen Size
|
3.7
|
Inch
|
|
3
|
Pixels Per Inch
|
130
|
-
|
|
4
|
ActiveArea
|
81.536(H)×47.04(V)
|
mm
|
|
5
|
Pixel Pitch
|
0.196×0.196
|
mm
|
|
6
|
TFT Area
|
92.99(H)×53.00(V)
|
mm
|
|
7
|
Outline Dimension
|
128.99(H)×53.00(V)×0.912(D)
|
mm
|
|
8
|
Pixel Configuration
|
Square
|
-
|
|
9
|
Driver IC
|
SEE370
|
-
|
|
10
|
Module Weight
|
TBD±10%
|
Gram
|
3.7Inch Display Module with 240x416 SPI Customize Solution
Touch Panel Integration
If your project involves option input, then it is possible to add a capacitive touch panel on the surface of the display. This will entail other accessories and changes to the bezel of the display.
Custom Display Driver
It is very rarely that the need for a custom written display driver would arise but in highly specific cases, you may need the extra boost or have certain parameters not available with the ordinary driver installed. This demands basic understanding in display technology and most importantly, programming.
Backlight Integration customize
As a rule, e-paper displays are reflective, and do not need a backlight for regular running such as reading small text in low light, contents with a light behind it may be preferable.
Hardware Design Software
For touch panel it may be necessary to develop printed circuit boards (PCBs) of your own design. The only requirement that would be called for would be a PCB design software.
