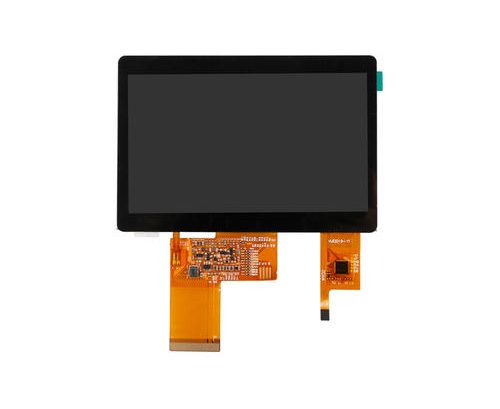

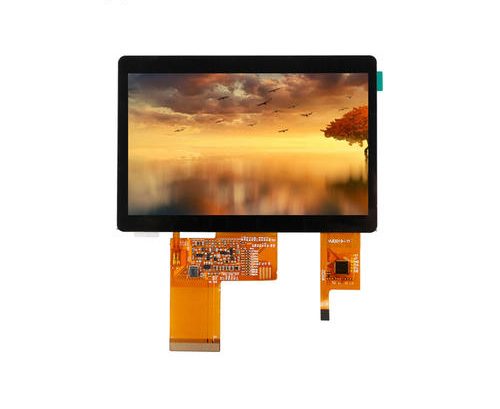

شاشة LCD مقاس 4.3 بوصة
WTY043734A01LMI
شاشة LCD مقاس 4.3 بوصة
Production State
In Production
Stock Quantity
10 Pieces
Product Details
<فئة H2 = "WP-block-heading" النمط = "حجم الخط: 30 بكسل" >4.3 بوصة ميزات شاشة LCD:
فوائد استخدام شاشة LCD مقاس 4.3 بوصة
التطبيقات:
لماذا تختار Wanty لشاشة LCD مقاس 4.3 بوصة؟
Technical Parameters:
|
Model
|
WTY043734A01LMI
|
|
Size
|
4.3 inches
|
|
LCD Type
|
TFT
|
|
Display Type
|
IPS
|
|
Interface
|
RGB
|
|
Pin No.
|
40Pin
|
|
Resolution
|
800x480
|
|
Brightness
|
510cd/m2
|
|
Viewing Direction
|
Free o'clock
|
|
Viewing Angle Range
|
—
|
|
Contrast Ratio
|
800:1
|
|
LCD Active Area (mm)
|
95.04×53.86
|
|
LCD Outline Dimension (mm)
|
105.42×67.07×2.75
|
|
Anti-Glare/Anti-Reflection/Anti-Fingerprints
|
Available
|
|
Touch Type
|
Capacitive
|
|
Touch Points
|
5 points
|
|
Touch IC Chip
|
N8110
|
|
Touch Structure
|
G+G
|
|
Touch Interface
|
IIC (I2C)
|
|
Touch Hardness
|
6H
|
|
Operating Temperature
|
-10ºC~+50ºC
|
|
Storage Temperature
|
-20ºC~+60ºC
|
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
4.3 Inch Lcd Display customization solution
Multi-Touch Customization
Wanty provides the ability to implement a customized solution of multi-touch functionality. Add to the option to fine-tune the touch sensitivity, regarding the needs of the clients.
Custom Touch Driver Integration
From Wanty, talk to us about how we can make the integrating of a touch driver that supports particular touch operations.
Backlight Control Options
Wanty customize the options for backlight control, allowing customers to adjust the display's brightness for different lighting scenarios.
LCD customization
Wanty offers 4. 3” LCD customizations to your visual needs from the basic up to touch interaction along with brightness regulation.
