5 بوصة شاشة تعمل باللمس بالسعة
T050GBP002
5 بوصة شاشة تعمل باللمس بالسعة
Production State
In Production
Stock Quantity
10 Pieces
Product Details
<فئة H2 = "WP-block-heading" النمط = "حجم الخط: 30 بكسل" > 5 بوصة ميزات شاشة تعمل باللمس بالسعة :
مزايا شاشة تعمل باللمس بالسعة 5 بوصة:
التطبيقات:
لماذا يعتبر Wanty موثوقا؟
Technical Parameters
|
Model
|
T050GBP002
|
|
Size
|
5 Inch
|
|
LCD Type
|
TFT
|
|
Display Type
|
TN
|
|
LCD Interface
|
RGB
|
|
Pin No.
|
40Pin
|
|
Resolution
|
800×480
|
|
Brightness
|
350cd/m2
|
|
Viewing Direction
|
12 o’clock
|
|
Viewing Angle Range
|
70/70/60/70Deg.
|
|
LCD Active Area (mm)
|
108.00×64.80
|
|
LCD Outline Dimension (mm)
|
121.00×97.05×7.03
|
|
Anti-Glare/Anti-Reflection/Anti-Fingerprints
|
Customizable
|
|
Touch Type
|
Capacitive
|
|
Touch Points
|
5 Points
|
|
Touch Structure
|
G+G
|
|
Touch Interface
|
IIC (I2C)
|
|
Touch Hardness
|
6H
|
|
Module Structure
|
PCAP Touch & LCD Display & PCB
|
|
PCB Interface
|
HDMI USB
|
|
Cables
|
With/Without
|
|
Operating Temperature
|
-10ºC~+50ºC
|
|
Storage Temperature
|
-20ºC~+60ºC
|
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
5 Inch Capacitive Touch Screen Customize Solution
Driver IC Selection
Enable the customers to select matching driver ICs in relation with their project, or the desired hardware and software environment.
Variable Backlight and Power Control Customization
Wanty offer customization options for controlling the backlight brightness and optimize battery life in portable devices or improve user comfort in varying lighting conditions.
Resolution Technology Customization
Wanty include settings for choosing higher resolutions where the picture is adjusted to be sharper on the 5-inch screen.
Multi-Touch Enhancement Customization
Wanty providing various touch technologies for enhancing touch sensitivity and multi-touch to fulfill the need of interactive applications.
Explore similar products
Client’s Case and Application

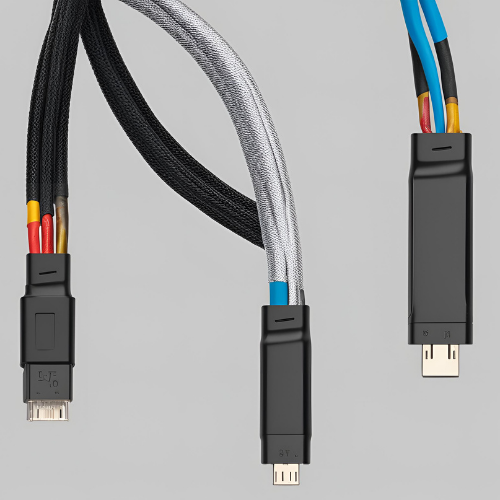

تخصيص كابل LCD
