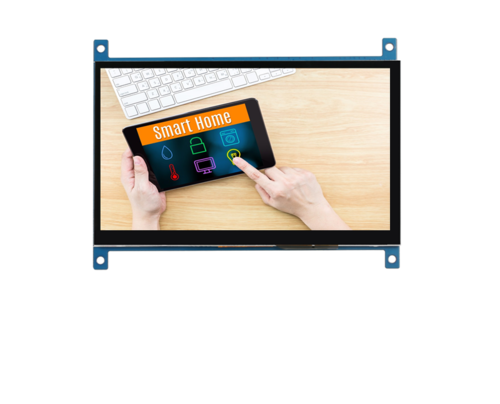

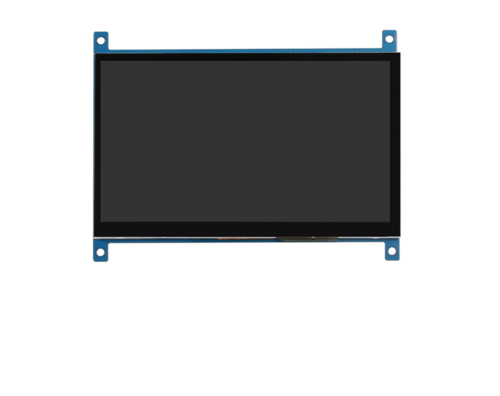

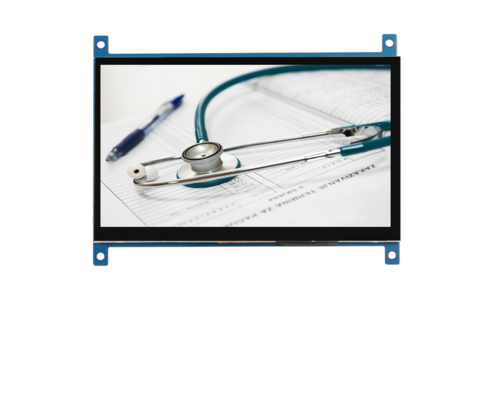

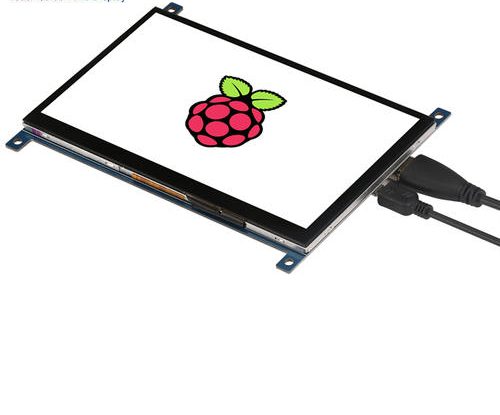

شاشة تعمل باللمس مقاس 7 بوصات 1024 × 600 IPS HDMI USB تعمل باللمس
T070GBP002
شاشة تعمل باللمس مقاس 7 بوصات 1024 × 600 IPS HDMI USB تعمل باللمس
Production State
In Production
Stock Quantity
10 Pieces
Product Details
7 بوصة 1024 × 600 IPS HDMI USB نظرة عامة على شاشة اللمس :
< فئة H2 = "WP-block-heading" النمط = "حجم الخط: 30 بكسل" > ميزات شاشة اللمس 7 بوصة 1024 × 600 IPS HDMI USB: <فئة H3 = "WP-block-heading" النمط = "حجم الخط: 23 بكسل" >فوائد شاشة اللمس 7 بوصات 1024 × 600 IPS HDMI USB:لماذا تختار Wanty؟
Technical Parameter
|
Model
|
T070GBP002
|
|
Size
|
7 inches
|
|
LCD Type
|
TFT
|
|
Display Type
|
IPS
|
|
LCD Interface
|
RGB
|
|
Pin No.
|
50Pin
|
|
Resolution
|
1024×600
|
|
Brightness
|
250cd/m2
|
|
Viewing Direction
|
All o'clock
|
|
Viewing Angle Range
|
85/85/85/85Deg.
|
|
Contrast Ratio
|
—
|
|
LCD Active Area (mm)
|
154.21×85.92
|
|
LCD Outline Dimension (mm)
|
165.00×125.00×3.5
|
|
Anti-Glare/Anti-Reflection/Anti-Fingerprints
|
Available
|
|
Touch Type
|
Capacitive
|
|
Touch Points
|
5-10 Points
|
|
Touch IC Chip
|
GT911
|
|
Touch Structure
|
G+G
|
|
Touch Interface
|
IIC/I2C
|
|
Touch Hardness
|
6H
|
|
Module Structure
|
PCAP Touch & LCD Display & PCB
|
|
PCB Interface
|
HDMI (for display and image), USB (for touch and power)
|
|
Cables
|
With/Without
|
|
Operating Temperature
|
-10ºC~+50ºC
|
|
Storage Temperature
|
-20ºC~+60ºC
|
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
7 Inch 1024x600 IPS HDMI USB Touch Display Customize Solution
Touch Drivers customize
From Wanty it is possible to get general information about the supported Operation Systems, as well as if there are any Touch drivers required or customized.
Operating System Customize
It is customize and easily recognizable for the majority of the users, media consumption pleasant, simple bookkeeping, and applications which are delicately devoted to performing on the Android platform, Linux, and Windows 10 IoT Core.
More Touch Points
Wanty has better control, especially for touch movements like two/fingers pinching to zoom or three/fingers to rotate in 3D or draw on the screen or any use of the fingers more than two in general.
Design Customize:
Wanty Provide an extra shield to the display. It is suitable for industrial utilization or applications which are rough. Introduce a more modern appearance and have a greater amount of the display size visible to the viewer.
