شاشة LCD تعمل باللمس بالسعة مقاس 7 بوصات مع 1024x600 RGB IPS TFT
WTY070144A11LM

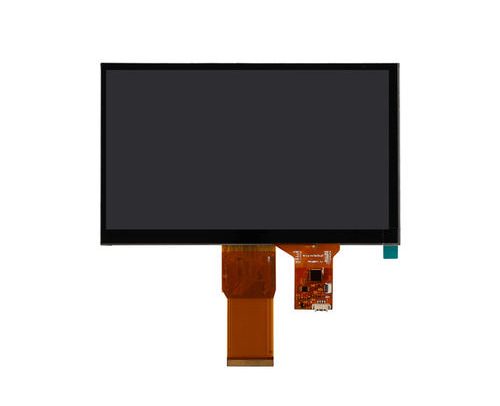

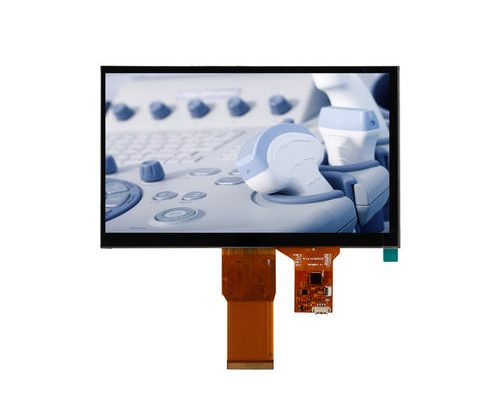

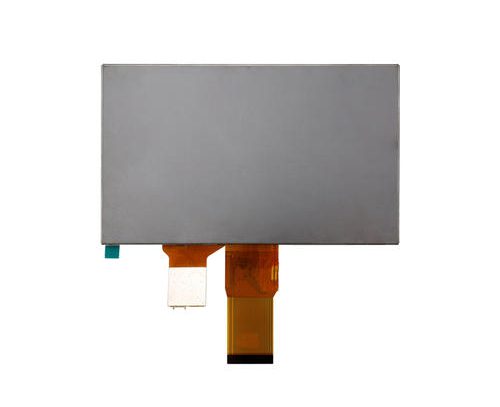

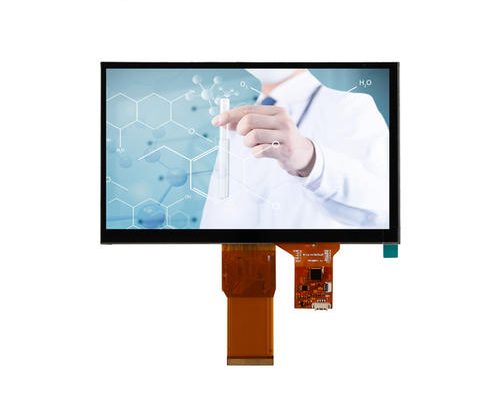

شاشة LCD تعمل باللمس بالسعة مقاس 7 بوصات مع 1024x600 RGB IPS TFT
Production State
In Production
Stock Quantity
10 Pieces
Product Details
نظرة عامة على المنتج:
ميزات شاشة LCD تعمل باللمس بالسعة مقاس 7 بوصات مع 1024x600 RGB Ips Tft:
<فئة H3 = "WP-block-heading" النمط = "حجم الخط: 23 بكسل" >مزايا شاشة LCD تعمل باللمس بالسعة مقاس 7 بوصات مع 1024x600 RGB IPS TFT:لماذا أخترتنا؟
Technical Parameters
|
Model
|
WTY070144A11LM
|
|
Size
|
7 inches
|
|
LCD Type
|
TFT
|
|
Display Type
|
IPS
|
|
Interface
|
RGB
|
|
Pin No.
|
50Pin
|
|
Resolution
|
1024×600
|
|
Brightness
|
220cd/m2
|
|
Viewing Direction
|
All o'clock
|
|
Viewing Angle Range
|
85/85/85/85Deg.
|
|
Contrast Ratio
|
800:1
|
|
LCD Active Area (mm)
|
154.21×85.92
|
|
LCD Outline Dimension (mm)
|
165.00×100.00×3.50
|
|
Anti-Glare/Anti-Reflection/Anti-Fingerprints
|
Available
|
|
Touch Type
|
Capacitive
|
|
Touch Points
|
5 points
|
|
Touch Structure
|
G+G
|
|
Touch Interface
|
USB
|
|
Touch Hardness
|
6H
|
|
Operating Temperature
|
-10ºC~+50ºC
|
|
Storage Temperature
|
-20ºC~+60ºC
|
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
7 Inch Capacitive Touch Screen Customize Solution
Brightness Adjustment customize
This includes maintaining the brightness of the screen at the right level depending on the ambient conditions. It can be either manual or automatic process.
Manual Adjustment
The users have full control customize over setting the brightness level to the desired on.
Color Temperature Adjustment
This means that the users can adjust the white balance of the display, the white balance could be set as warm which creates yellowish tint or cold which creates bluish tint. This is useful for eye health or when targeting material of certain kinds, like text on the display.
Adaptive Backlight Control
This is an improved version of ABC that in addition to the brightness of the surroundings takes into consideration any information displayed on the screen. Brightness controls custom are reduction of the backlight intensity if the scene is dark will help save energy and the status of the contrast.
