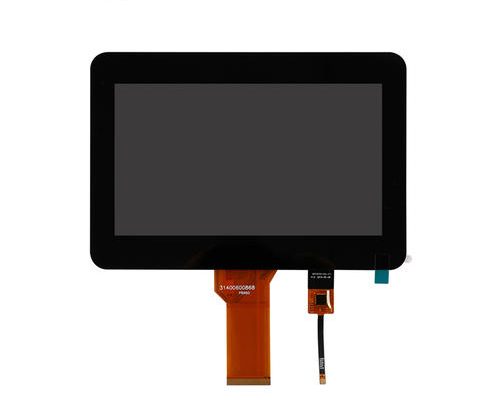

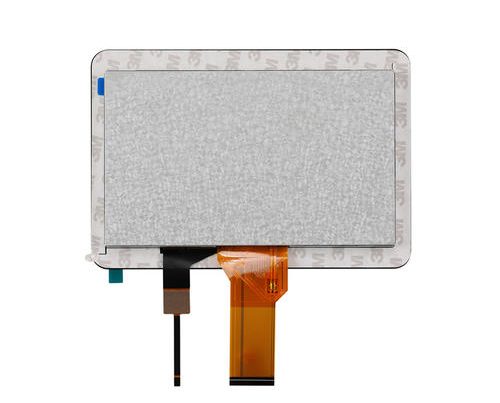

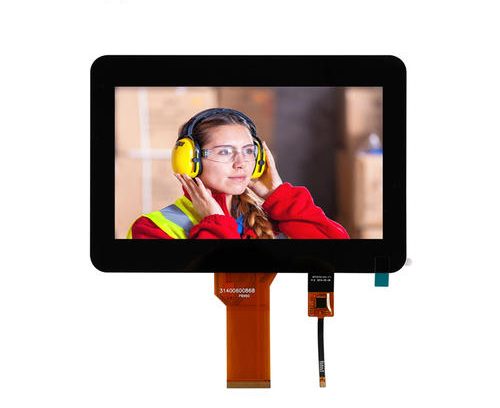

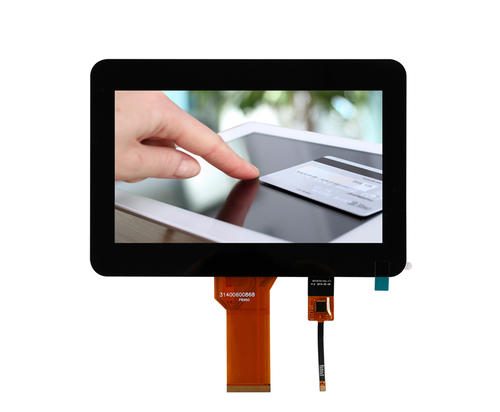

شاشة LCD مقاس 7 بوصات
WTY070144A20LM
شاشة LCD مقاس 7 بوصات
Production State
In Production
Stock Quantity
10 Pieces
Product Details
< فئة H2 = نمط "WP-block-heading" = "حجم الخط: 30 بكسل" > شاشة LCD مقاس 7 بوصة مع تفاصيل 800 × 480 RGB:
ميزات شاشة LCD مقاس 7 بوصات ، مع 800 × 480 RGB TN TFT ، IIC بالسعة اللمس:
فوائد شاشة LCD مقاس 7 بوصات ، مع 800 × 480 RGB TN RGB ، IIC بالسعة اللمس:
لماذا أخترتنا؟
Technical Parameters
|
Model
|
WTY070144A20LM
|
|
Size
|
7 inches
|
|
LCD Type
|
TFT
|
|
Display Type
|
TN
|
|
Interface
|
RGB
|
|
Pin No.
|
50Pin
|
|
Resolution
|
800×480
|
|
Brightness
|
450cd/m2
|
|
Viewing Angle Range
|
70/70/50/70Deg.
|
|
Contrast Ratio
|
500:1
|
|
LCD Active Area (mm)
|
154.08×85.92
|
|
LCD Outline Dimension (mm)
|
164.90×100.00×5.70
|
|
Anti-Glare/Anti-Reflection/Anti-Fingerprints
|
Available
|
|
Touch Type
|
Capacitive
|
|
Touch Points
|
5 points
|
|
Touch IC Chip
|
GT911
|
|
Touch Structure
|
G+G
|
|
Touch Interface
|
IIC (I2C)
|
|
Touch Hardness
|
6H
|
|
Operating Temperature
|
-20ºC~+70ºC
|
|
Storage Temperature
|
-30ºC~+80ºC
|
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
7 Inch Lcd Display customize solution
Size customize
Optimize the ratio and size of the display area and the frame to meet relevant design requirements.
Shape Customize
Define the size of the screen customize (elongated, square, or any other) depending on the requirement of the particular use.
Customization of Touch Panel
Able to set up shape, size & 3 functionality of the touch panel to be ddaped to certain parameters.
Protective Coatings
Surface protection in the form of varnish, anti-fingerprint, or any material that can provide extra protection is done to the tables.
Explore similar products
Client’s Case and Application

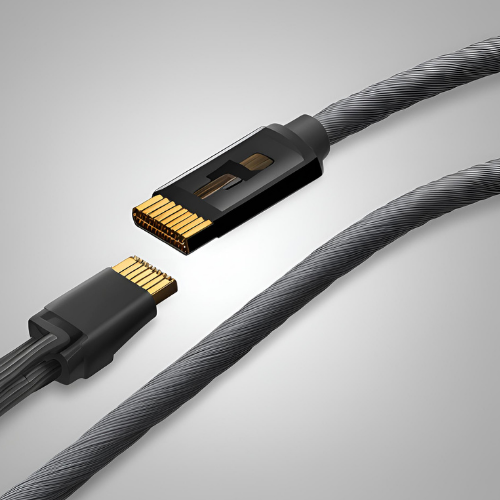

تخصيص كابل LCD
